Foam Radio Controlled Airplane Designs

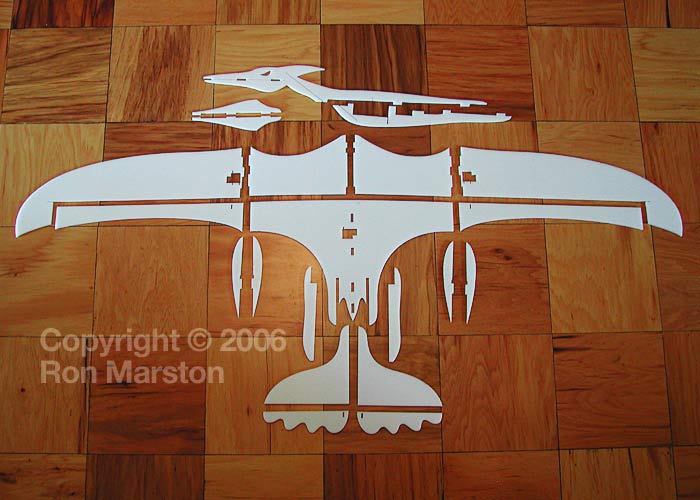

foam pterodactyl parts

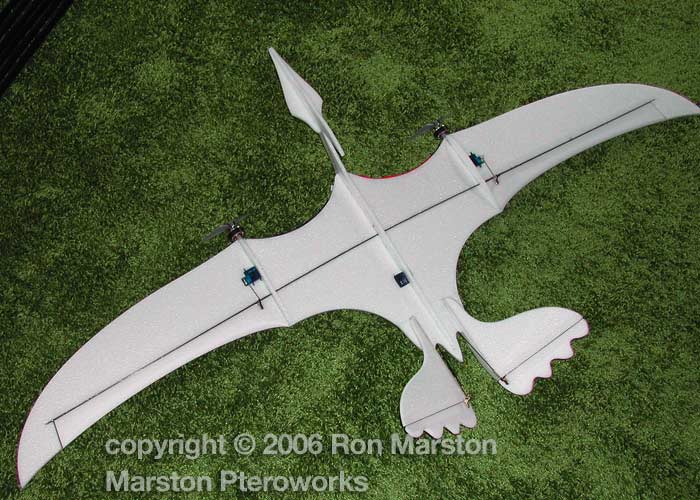

Depron foamy twin engine RC Marston Pterodactyl

Design Notes:

New revision January 2008 - improved flight characteristics and stability
The revised Depron Marston Pterodactyl can be built in a day or two, or a few evenings, and looks like no other foam RC plane in the air.

wing span:52.5"
wing area: 270 square inches
auw: 10 oz. - 11 oz.
wing loading: 5 - 6 oz./square foot
twin brushless motors

material required:

Depron foam - 6mm - 24" x 36" for laser cutting or hand cutting
carbon spar - 5.7 mm x 1mm

servos: three HS-55 or equivalent
motors: two CD ROM GBx-1 or other 50W motors
controller: one CC Phoenix or Thunderbird or other 10A controller
battery: 800mah - 1050mah 2s -3s Li-Poly

Plans Available Here


PDF of plans and parts $20
Print Plans and cut the foam yourself.
PDFs will be emailed when payment is received.
Includes 2 files:
1. Parts layout for three 12" x 24" Depron sheets (24" x 36")
2. Full size high resolution plans drawn in 3-view,
with building notes (36" x 60")
Payment is made securely through PayPal. Clicking on one of the Buy Now buttons will take you to their secure site. Payment can be made with a PayPal account or with any major credit card. Email for other payment options.


A great place to buy your Depron - RC Foam.com
A great place to buy DIY brushless motors (CD ROM motor kits)- gobrushless.com
A great place to buy carbon fiber tubes/rods/woven - Aerospace Composite Products
A great place to buy RC motors, batteries, servos, etc. REALLY CHEAP - Hobby City

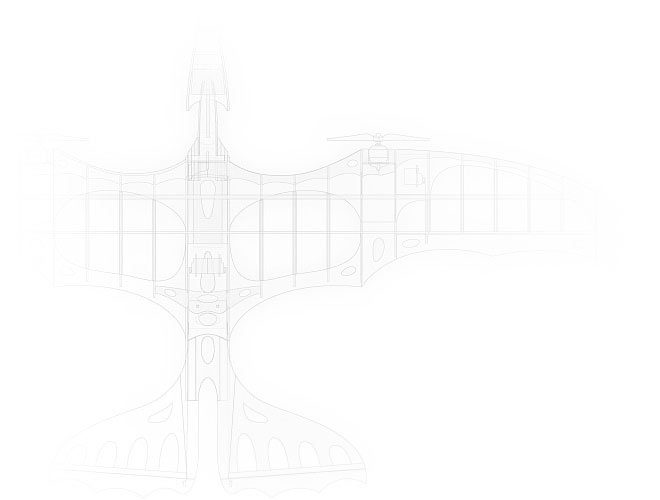

Upgrade from foam to wood....




marston foam pterodactyl
Marston Pterodactyl Foam Head
marston 52" RC Pterodactyl

depron RC plane

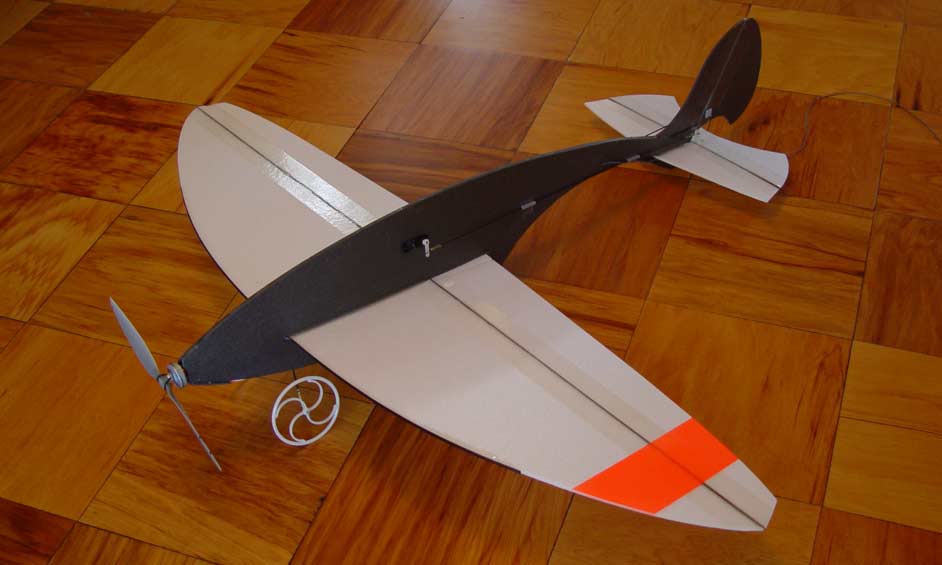

RC Depron foam 3D airplane
38" span 9 oz. rtf with $8.00 brushless motor and
2S-2P 1200 mah li-poly.


Download a FREE pdf of the plans for this Depron foam RC plane

Video of Depron plane 3MB (very short)

Wood version of this plane. Plans and laser cut kit available.

depron Radio Controlled Plane
RC Depron plane free plans
Unique Radio Controlled Electric Airplane designs by Ron Marston.
